Trees

Trees

https://www.w3schools.com/dsa/dsa_theory_trees.php

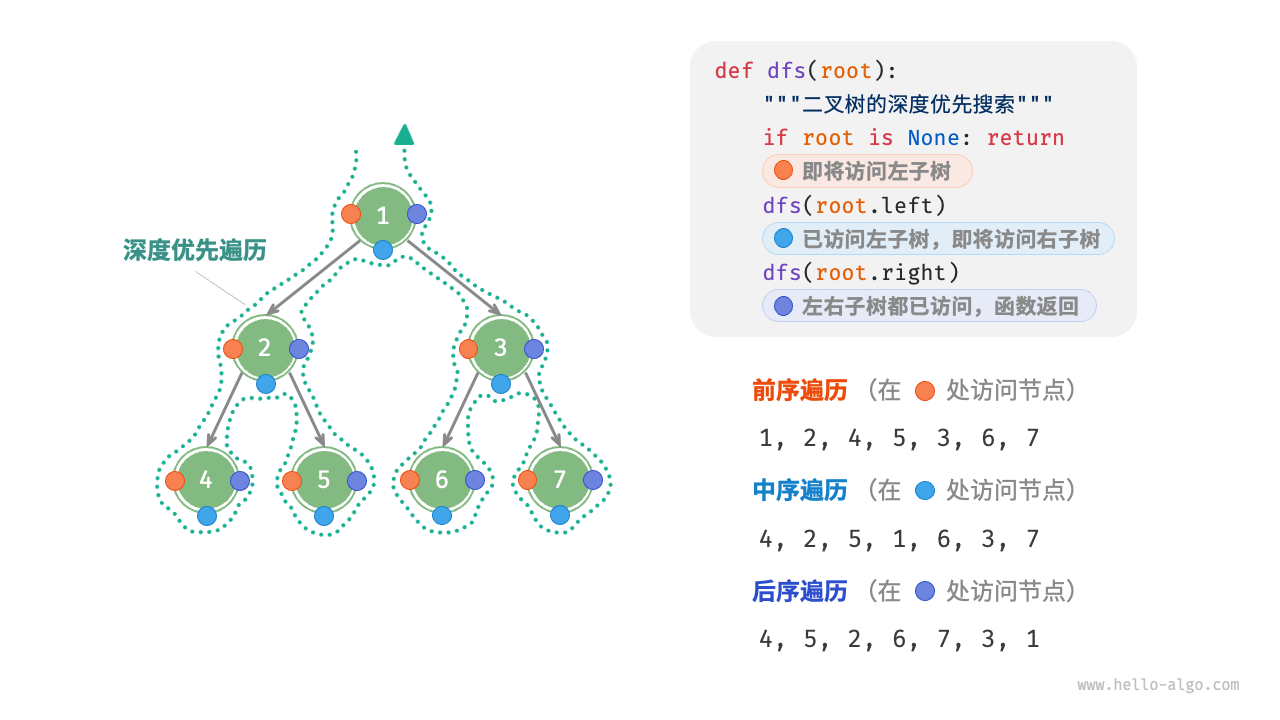

def pre_order(root: TreeNode | None):
    """前序遍历"""
    if root is None:
        return
    # 访问优先级：根节点 -> 左子树 -> 右子树
    res.append(root.val)
    pre_order(root=root.left)
    pre_order(root=root.right)

def in_order(root: TreeNode | None):
    """中序遍历"""
    if root is None:
        return
    # 访问优先级：左子树 -> 根节点 -> 右子树
    in_order(root=root.left)
    res.append(root.val)
    in_order(root=root.right)

def post_order(root: TreeNode | None):
    """后序遍历"""
    if root is None:
        return
    # 访问优先级：左子树 -> 右子树 -> 根节点
    post_order(root=root.left)
    post_order(root=root.right)
    res.append(root.val)

Invert Binary Tree

We can identify that each node in the tree is switched, so we can simply just switch the left and right node

class Solution:
    def invertTree(self, root: Optional[TreeNode]) -> Optional[TreeNode]:
        #dfs on each node and switch each other
        def dfs(root):
            if not root:
                return

            root.left, root.right = root.right, root.left
            dfs(root.left)
            dfs(root.right)

        dfs(root)
        return root

Maximum Depth of Binary Tree

DFS use the level to track each node and return when it reaches the bottom, and compare the max(left, right). Bottom up

class Solution:
    def maxDepth(self, root: Optional[TreeNode]) -> int:
        if not root:
            return 0

        return 1 + max(self.maxDepth(root.left), self.maxDepth(root.right))

# Below is an uncommon top-down style approach where we increment the level for each step
def dfs(node, level):
    if not node:
        return level
    left = dfs(node.left, level + 1)
    right = dfs(node.right, level + 1)
    return max(left, right)

BFS approach

class Solution:
    def maxDepth(self, root: Optional[TreeNode]) -> int:
        # bfs store each node and pop
        if not root:
            return 0
        def bfs(root):
            depth = 0
            q = deque([root])
            while q:
                n = len(q)
                depth += 1
                for _ in range(n):
                    node = q.popleft()
                    if node.left:
                        q.append(node.left)
                    if node.right:
                        q.append(node.right)
            return depth
        return bfs(root)

Diameter of Binary Tree

Similar to find the depth of binary tree, we just need to also track if the left + right is the maximum, we could add a comparison function before returning each node's depth.

class Solution:
    def diameterOfBinaryTree(self, root: Optional[TreeNode]) -> int:
        # for each node, we check the left and right, and also left + right
        self.res = 0
        def dfs(root):
            if not root:
                return 0
            left = dfs(root.left)
            right = dfs(root.right)
            self.res = max(self.res, left + right) # track the diameter

            return 1 + max(left, right)

        dfs(root)
        return self.res

Balanced Binary Tree

Similar idea of finding the depth of the binary tree, this case we would compare each node's height. Notice there are serval ways to determine the result, I am using a self.balanced for simplicity, but we could also use a tuple to store the state or change the return on left and right (-1) when it is unbalanced in this question.

class Solution:
    def isBalanced(self, root: Optional[TreeNode]) -> bool:
        self.balanced = True
        def dfs(root):
            if not root:
                return 0

            left = dfs(root.left)
            right = dfs(root.right)

            if abs(left - right) > 1:
                self.balanced = False

            return 1 + max(left, right)

        dfs(root)
        return self.balanced

Same Binary Tree

Traverse both trees at the same time and compare each node's value.

class Solution:
    def isSameTree(self, p: Optional[TreeNode], q: Optional[TreeNode]) -> bool:
        def dfs(p, q):
            if not p and not q:
                return True
            elif not p:
                return False
            elif not q:
                return False

            if p.val != q.val:
                return False

            left = dfs(p.left, q.left)
            right = dfs(p.right, q.right)

            return left and right

        return dfs(p, q)

Subtree of Another Tree

We could separate this question into 2 parts, one is find if 2 trees are identical and second is to iterate each node on the root and compare to check if there is a match.

class Solution:
    def isSubtree(self, root: Optional[TreeNode], subRoot: Optional[TreeNode]) -> bool:
        def isSameTree(p, q):
            if not p and not q:
                return True
            elif not p:
                return False
            elif not q:
                return False

            if p.val != q.val:
                return False

            left = isSameTree(p.left, q.left)
            right = isSameTree(p.right, q.right)

            return left and right

        def dfs(root):
            if not root:
                return False
            if isSameTree(root, subRoot):
                return True
            left = dfs(root.left)
            right = dfs(root.right)

            return left or right

        return dfs(root)

* Lowest Common Ancestor in Binary Search Tree - DFS

The DFS approach is straightforward and would take O(n) space, but we can further optimize into O(1) space.

class Solution:
    def lowestCommonAncestor(self, root: TreeNode, p: TreeNode, q: TreeNode) -> TreeNode:
        # mid, left, right
        self.ans = None
        def dfs(root):
            if not root:
                return False

            left = dfs(root.left)
            right = dfs(root.right)

            mid = True if root.val == p.val or root.val == q.val else False
            if left + right + mid >= 2:
                self.ans = root

            return left or right or mid

        dfs(root)
        return self.ans

We can use the property of the binary search tree, when that basically if a node is between the p and q, then it should become the LCA and we can return. If both nodes smaller, we can set the curr to left node and vice versa for the right node.

class Solution:
    def lowestCommonAncestor(self, root: TreeNode, p: TreeNode, q: TreeNode) -> TreeNode:
        cur = root

        while cur:
            if p.val > cur.val and q.val > cur.val:
                cur = cur.right
            elif p.val < cur.val and q.val < cur.val:
                cur = cur.left
            else:
                return cur

Binary Tree Level Order Traversal - BFS

class Solution:
    def levelOrder(self, root: Optional[TreeNode]) -> List[List[int]]:
        # bfs on each q length, append the left right node
        if not root:
            return []
        q = deque([root])
        res = []
        while q:
            level = []
            for _ in range(len(q)):
                node = q.popleft()
                level.append(node.val)
                if node.left:
                    q.append(node.left)
                if node.right:
                    q.append(node.right)
            res.append(level)
        return res

Binary Tree Right Side View - BFS

class Solution:
    def rightSideView(self, root: Optional[TreeNode]) -> List[int]:
        # bfs and store the first appeared result
        res = []
        q = deque([root])
        if not root:
            return []
        while q:
            for i in range(len(q)):
                node = q.popleft()
                if i == 0:
                    res.append(node.val)
                if node.right:
                    q.append(node.right)
                if node.left:
                    q.append(node.left)
        return res

Count Good Nodes in Binary Tree

class Solution:
    def goodNodes(self, root: TreeNode) -> int:
        # top down, pass the root.val
        self.count = 0
        def dfs(root, prev_max):
            if not root:
                return

            if root.val >= prev_max:
                self.count += 1
                prev_max = root.val

            dfs(root.right, prev_max)
            dfs(root.left, prev_max)

        dfs(root, float('-inf'))
        return self.count

Another way without using the global variables

class Solution:
    def goodNodes(self, root: TreeNode) -> int:
        def dfs(root,max_temp):
            if root is None:
                return 0

            total = 0
            if root.val >= max_temp:
                total = 1
                max_temp = root.val
            total += dfs(root.left,max_temp)
            total += dfs(root.right,max_temp)

            return total

        return dfs(root,-inf)

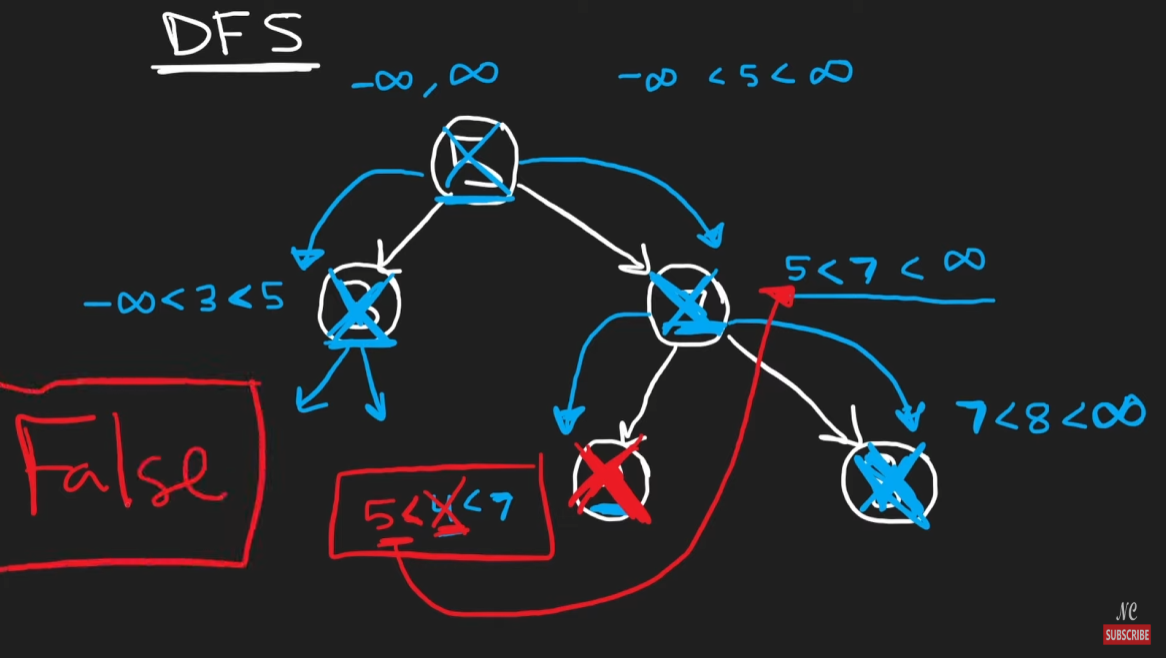

Valid Binary Search Tree

DFS approach - Better

class Solution:
    def isValidBST(self, root: Optional[TreeNode]) -> bool:
        def valid(node, left, right):
            if not node:
                return True
            if not (left < node.val < right):
                return False

            return valid(node.left, left, node.val) and valid(
                node.right, node.val, right
            )

        return valid(root, float("-inf"), float("inf"))

BFS approach

class Solution:
    def isValidBST(self, root: Optional[TreeNode]) -> bool:
        q = deque([(root, float('-inf'), float('inf'))])

        while q:
            node, left, right = q.popleft()
            if not node:
                continue
            if not left < node.val < right:
                return False

            q.append((node.left, left, node.val))
            q.append((node.right, node.val, right))
        return True

Kth Smallest Integer in BST

class Solution:
    def kthSmallest(self, root: Optional[TreeNode], k: int) -> int:
        # in order traversal, count
        self.count = 0
        self.res = root.val
        def dfs(root):
            if not root:
                return

            dfs(root.left)
            self.count += 1
            if self.count == k:
                self.res = root.val
            dfs(root.right)
        dfs(root)
        return self.res

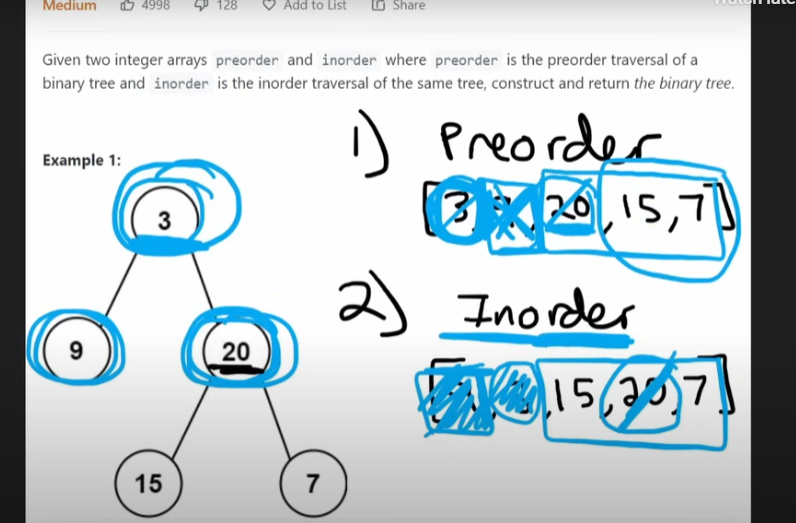

Construct Binary Tree from Preorder and Inorder Traversal

# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right

class Solution:
    def buildTree(self, preorder: List[int], inorder: List[int]) -> Optional[TreeNode]:
        if not preorder or not inorder:
            return None

        root = TreeNode(preorder[0])
        mid = inorder.index(preorder[0])
        root.left = self.buildTree(preorder[1 : mid + 1], inorder[:mid])
        root.right = self.buildTree(preorder[mid + 1 :], inorder[mid + 1 :])
        return root

Binary Tree Maximum Path Sum

class Solution:
    def maxPathSum(self, root: Optional[TreeNode]) -> int:
        self.res = root.val
        def dfs(root):
            if not root:
                return 0

            left = dfs(root.left)
            right = dfs(root.right)
            left_max = max(left, 0)
            right_max = max(right, 0)
            # computer max path sum WITH split
            self.res = max(self.res, root.val + left_max + right_max)
            # computer max path sum WITHOUT split
            return root.val + max(left_max, right_max)

        dfs(root)
        return self.res
